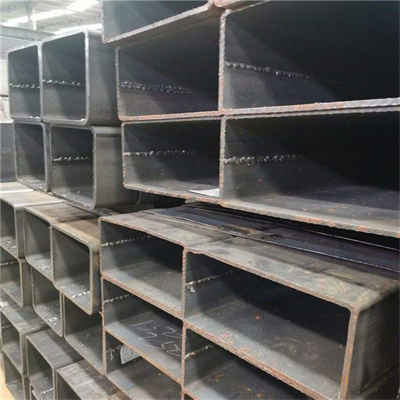

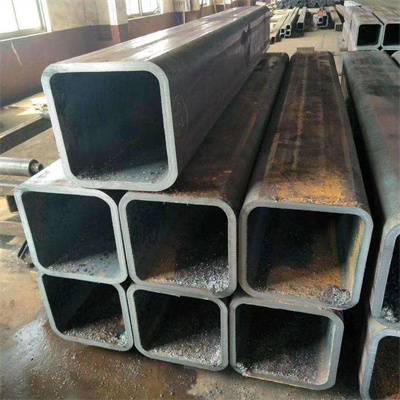

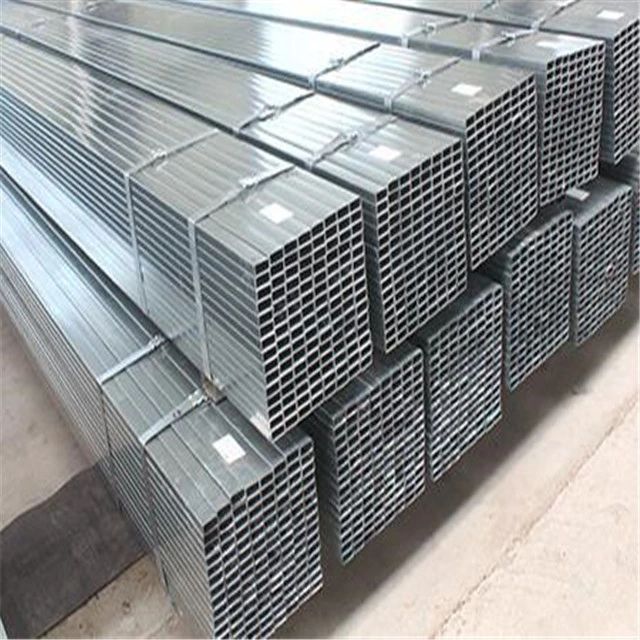

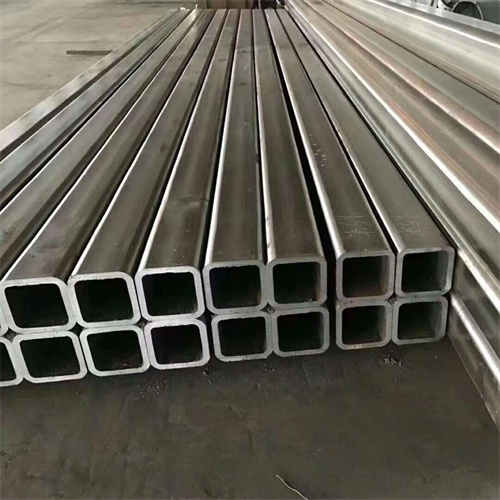

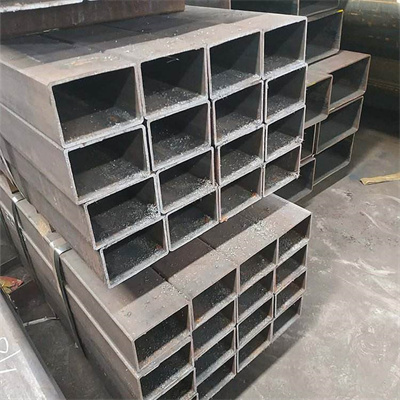

Square Pipe(SHS)

Square tube size: 10*10mm-500*500mm. WT: 0.5-20mm L: 0.3-18mtr Standard & Grade: EN 10210:S235JRH,S355J2H,S355NH,S355J0H EN 10219:S235JRH,S355J2H,S355NH,S355J0H ASTM A500:Gr.A,Gr.B,Gr.C Surface:Black bared ,can be galvanized,oiled,painted,powdered. Packing: Waterproof plastic bag,bundle with strip

Classification ：

E-mail

PRODUCT DETAILS

Description

Square tube is formed from coil and then ran through a series of dies. It’s welded from the inside to form its shape. Square tubes are generally used for maintenance and structural purposes.

Some examples of square tubing applications would be building construction, railings, and sign posts. They are measured by their outside dimensions and their wall thickness.

Square Tube is available in the following metal types:

Alloy Steel

Mild Stee

Carbon Steel

Stainless Steel

Square tube has similar uses to RHS and is used for both industrial and construction applications. Square section RHS is available in the same thicknesses as RHS and dimensions range from 20 mm x 20 mm to 400 mm x 400 mm.

Specification

Size by Inch (diameter)	Thickness	Sizes by MM (diameter)	Thickness
inch	inch	mm	mm
1/2" x 1/2"	0.065"	16mm×16mm	0.4mm～1.5mm
3/4" x 3/4"	0.049"	18mm×18mm	0.4mm～1.5mm
	0.065"	20mm×20mm	0.4mm～3mm
	0.083"	22mm×22mm	0.4mm～3mm
	0.120"	25mm×25mm	0.6mm～3mm
1" x 1"	0.049"	30mm×30mm	0.6mm～4mm
	0.058"	32mm×32mm	0.6mm～4mm
	0.065"	34mm×34mm	1mm～2mm
	0.072"	35mm×35mm	1mm～4mm
	0.083"	38mm×38mm

Warehouse Storage

Our company produces all year roundseamless steel pipe.Can also do steel pipe fabrication according to drawings, super fast delivery time. Accept inspect the products before shipping.
Carbon steel pipe, alloy steel pipe, boiler steel pipe, thin wall steel pipe and thick steel pipe.Galvanized steel pipe， stainless steel pipe,we can cut the seamless steel pipe into the length you demand, and can make the surface to be bright by milling and grinding at the Lathe, and can grind the outer diameter and wall thickness to be the dimension you demand. If the sizes are not available from the standard common stock sizes, and the quantity are not enough for the new production, then we need process the stock larger seamless pipes into the sizes you need. And we also can make steel pipes deep processing.

Packing and shipping

Packing Details:
- Packing in bundles
- Packing in wooden cases
- Bulk shipment, without packing
- Export standard package, or as customers request.
Container information:
20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high)
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)
Delivery Details :
7-15 days, or according to the order quantity or upon negotiation.

Process flow

Application field

Chilled water pipe, Steam/condensate pipe, Heat exchanger pipe, Marine/offshore pipe, Dredging pipe, Industrial pipe, Oil and gas pipe, Fire fighting pipe, Construction/structure pipe, Irrigation pipe, Drain/sewage pipe, Boiler tube

Certificate

Customer Reviews

FAQ

Q1:Can you send samples?
A:Of course, we can provide customers with free samples and express shipping service to all over of the world.
Q2:What product information do I need to provide?
A:Please kindly provide the grade, width, thickness, surface treatment requirement should you have and quantities you need to purchase.
Q3:It's my first time to import steel products, can you help me with it?
A:Sure,we have agent to arrange the shipment, we will do it together with you.
Q4:What about product prices information?
A:Prices various according to periodic price changes of raw materials.
Q5:What ports of shipment are there?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can specify other ports according to your needs.
Q6:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment or based on BL copy or LC at sight.
