Casing And Tubing Coupling

Product:Casing and Tubing Coupling, Casing Coupling, Tubing Coupling Application:Used for connect 2 joints of tubing or casing Size:Tubing Coupling : 1.9'' - 4-1/2'' Casing Couping : 4-1/2'' - 13-3/8'' Pipe Standard: API 5CT and 5B PSL1/PSL2 J55,K55,N80-1,N80-Q,API 5CT and 5B L80-1,C90, C95,T95, P110, Q125 Surface:Whole Phosphating or inside phosphating and outside coating Thread:NUE, EUE, STC, LTC, BTC etc.

Classification ：

Oil country tubular goods

E-mail

PRODUCT DETAILS

Description

About Tubing coupling

Normally tubing coupling OD maximum is 4 1/2”, as the tubing pipe is applied for the drilling activities (Inside the tubing is the sucker rod to drill/pump the oil), couplings type is more various and rigorous than casing, mostly used is thicken type upset coupling (Internal upset and external upset), for short is EUE coupling, it is the most favorable in tubing connections. Tubing with EU end (EUE) coupling connection also called UPTBG. Because of the end of the tubing is thickened (upset), the connecting stress is better than buttress coupling.

Buttress coupling another type used for tubing connections, it has the same thickness of the pipe body, called NU end (NUE)tubing or TBG.

Features

The oil tubing coupling can solve the problem of fatigue fracture in the existing coupling due to stress concentration. Oil tubing end is connected to the inside wall of the coupling in a tapered thread. The coupling body end and oil tubing are connected with same thread pitch flat thread. The coupling is not easy to produce fatigue fracture, and has good connection effect. It can prevent the accident of oil well pipe string break effectively.

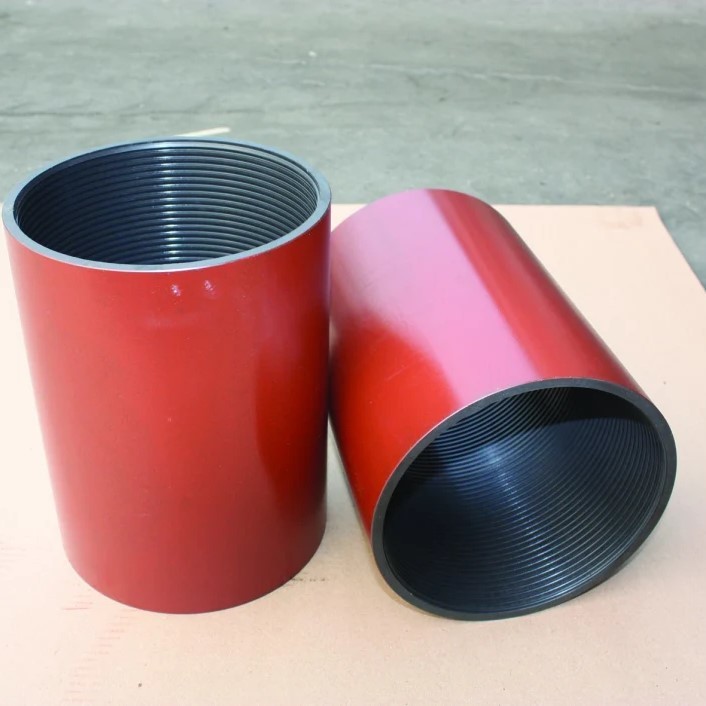

About Casing coupling

Casing coupling is for the dimensions more than 4 1/2 inch. Differently than tubing coupling is, casing coupling normally does not need to be thickened (Non-upset), which means no upset casing coupling, so it has following types:

• BTC: Buttress coupling

• LTC: Long buttress coupling

• STC: Short buttress coupling

All three types has same thickness of the casing pipe body, just have different lengths.

The oil casing coupling is a necessary piece used to connect the two casing. The coupling manufacturing method is the same as seamless pipe. The steel pipe ends with internal thread to connect with the upper and lower casing. In order to ensure the joint tightness, the precision of screw thread is strictly required.

Seamless and ERW Casing

Specification	API 5CT
Grades	K55, N80, L80, C95, P110, Chrome, J55(Modified), J55 (API), PS80
Special Grades	For sour services and for deep well with high collapse properties
Dimensions	OD 4" - 26" WT - 0.2 -0.5"
Length range	1, 2 or 3
Thread connections	API (STC and LTC), BTC, extreme line, etc.

Seamless and ERW Tubing

Specification	API 5CT
Grades	J55 (API) J55(Modified), N80, L80, L80 13Cr, P110, Q125, H40 (API)
Thread connections	API 5B - Last Edition or Premium, EUE, NUE, special seal, metal-to-metal seal and VAGT

Specification

Casing Couplings Short Thread Specifications:

Casing Couplings Short Thread	Casing Size OD (inches)	Coupling Size OD (inches)	Length (inches)	Weight per Coupling (lbs)	Palletized Carton Quantity
	4-1/2	5.000	6.250	8.05	343

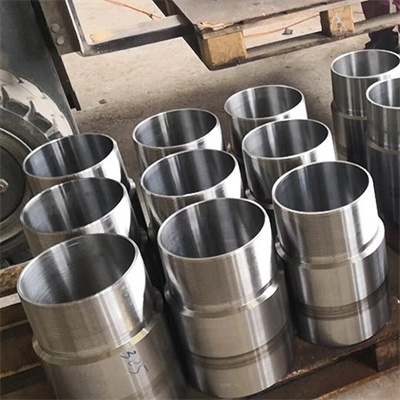

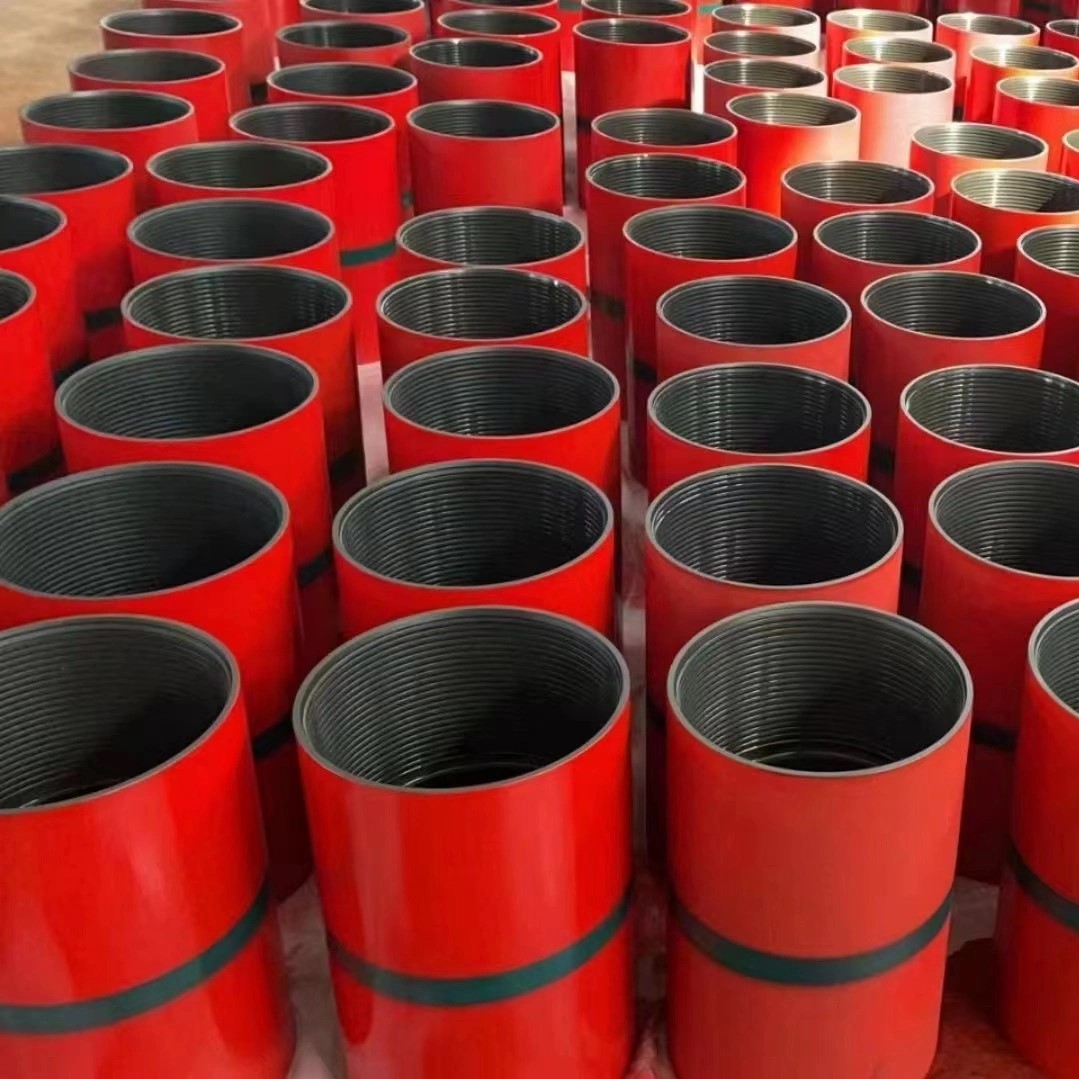

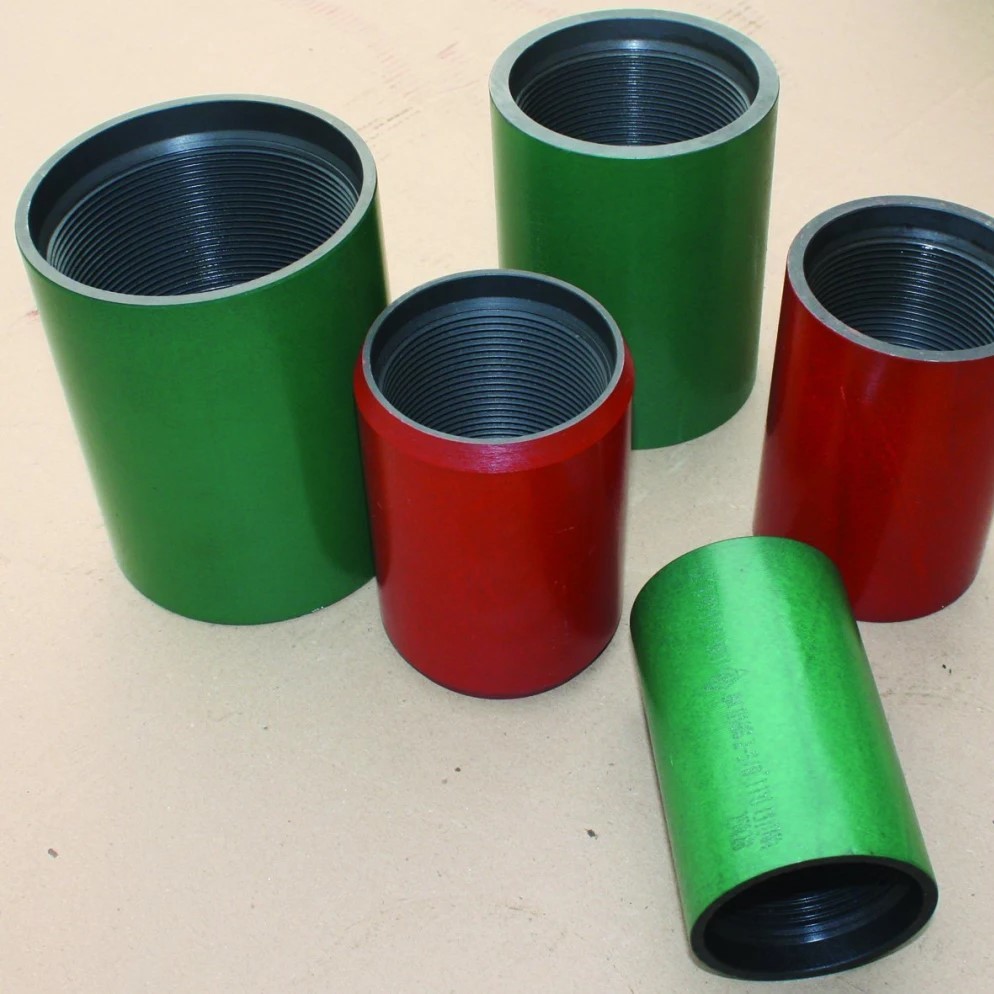

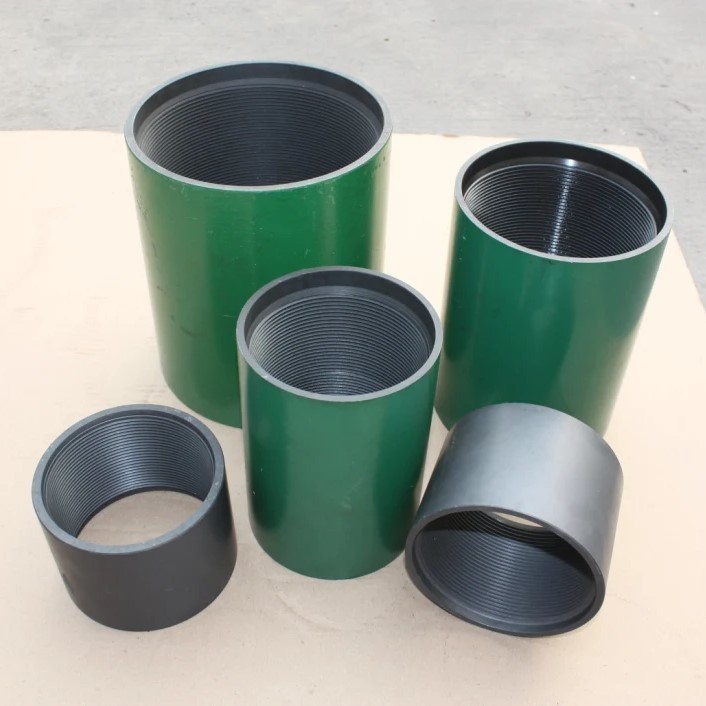

Products Display

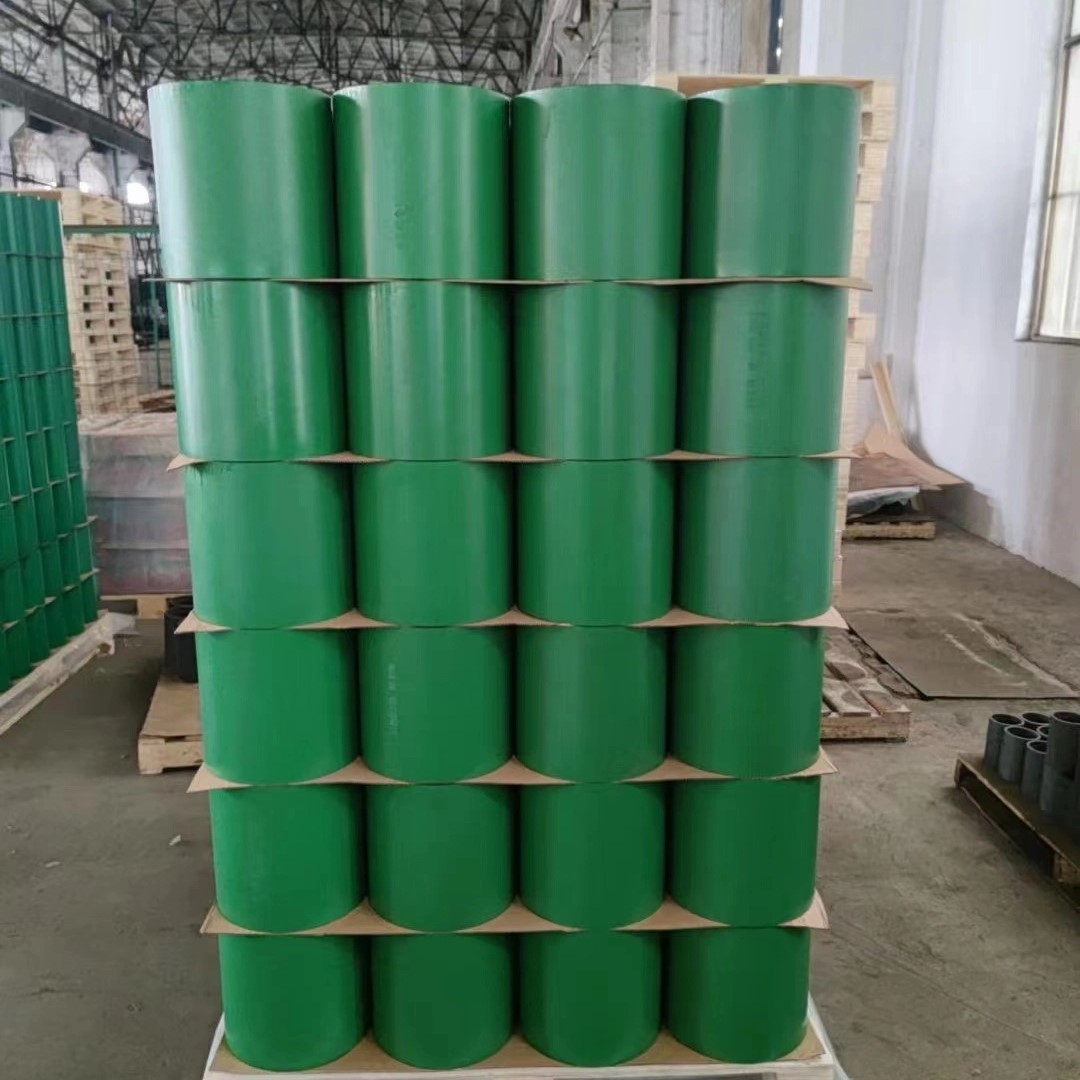

Warehouse Storage

Our company produces all year roundseamless steel pipe.Can also do steel pipe fabrication according to drawings, super fast delivery time. Accept inspect the products before shipping.
Carbon steel pipe, alloy steel pipe, boiler steel pipe, thin wall steel pipe and thick steel pipe.Galvanized steel pipe， stainless steel pipe,we can cut the seamless steel pipe into the length you demand, and can make the surface to be bright by milling and grinding at the Lathe, and can grind the outer diameter and wall thickness to be the dimension you demand. If the sizes are not available from the standard common stock sizes, and the quantity are not enough for the new production, then we need process the stock larger seamless pipes into the sizes you need. And we also can make steel pipes deep processing. For example, size OD250x ID200 is not stock common size, then need using larger pipe to process into 250x 200, same as OD170xID100

Packing and shipping

Packing Details:
- Packing in bundles
- Packing in wooden cases
- Bulk shipment, without packing
- Export standard package, or as customers request.
Container information:
20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high)
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)
Delivery Details :
7-15 days, or according to the order quantity or upon negotiation.

Process flow

Customer Reviews

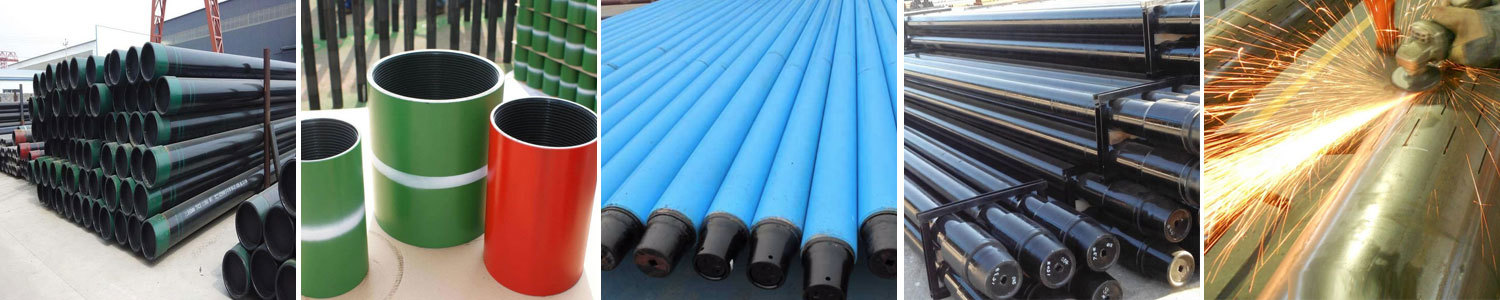

Application field

Chilled water pipe, Steam/condensate pipe, Heat exchanger pipe, Marine/offshore pipe, Dredging pipe, Industrial pipe, Oil and gas pipe, Fire fighting pipe, Construction/structure pipe, Irrigation pipe, Drain/sewage pipe, Boiler tube

Certificate

FAQ

Q1:Can you send samples?
A:Of course, we can provide customers with free samples and express shipping service to all over of the world.
Q2:What product information do I need to provide?
A:Please kindly provide the grade, width, thickness, surface treatment requirement should you have and quantities you need to purchase.
Q3:It's my first time to import steel products, can you help me with it?
A:Sure,we have agent to arrange the shipment, we will do it together with you.
Q4:What about product prices information?
A:Prices various according to periodic price changes of raw materials.
Q5:What ports of shipment are there?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can specify other ports according to your needs.
Q6:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment or based on BL copy or LC at sight.
